NH1GG69V250P IGBT Module 250A High Current 1200V Voltage Low Vce(sat) High Efficiency Robust Isolation 175anddeg;C Rating Compact Design for Industrial Drives andamp; UPS Systems
andnbsp;
Features
Dimensions according to DIN 43 620 parts 1 to 4
Non-isolated gripping lugs
Double indicator
0% cadmium
andnbsp;
Applications
general purpose cable and line protection
andnbsp;

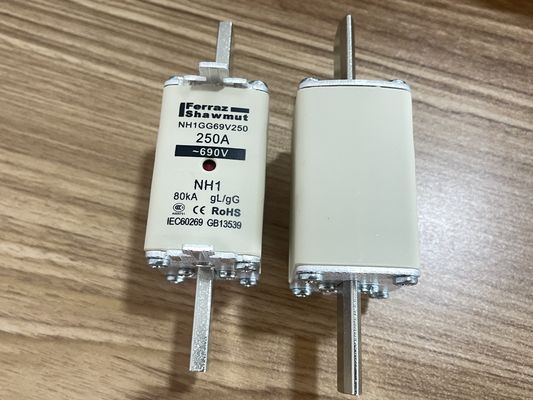

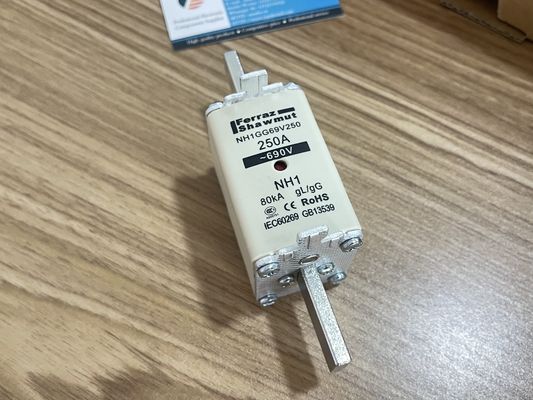

Description
Type andquot;gGandquot; NH fuse-links are full range breaking capacity fuse-links and are used toandnbsp;protect cables and equipment. They can interrupt any current surge, from the lowestandnbsp;fusing current up to their breaking capacity, and so can be used alone as protection.They also protect electrical devices and industrial set-ups from the electrodynamicandnbsp;effects of very high short-circuit currents.
andnbsp;
INFORMATION
| Item number |
W233262 |
| Catalogue No |
NH1GG69V250 |
| Description |
DIN NH Standard fuse-link gG Size NH1 690VAC 400VDC 250A live tags Double indicator Body width 40 mm |
| EAN/UPC Code |
8430399026114 |
| Rated voltage AC IEC |
690 V |
| Rated voltage DC IEC |
400 V |
| Ampere Rating |
250 A |
| ROHS Compliant |
Yes |
| AC or DC |
AC/DC |
| Speed/Characteristic |
gG |
| Fuse Size |
NH1 |
| Mounting |
Clip |
| AC Max I.R./Breaking Capacity: I1 |
80 kA |
| Design Details |
live tags |
| Indication System |
Yes |
| Indication System Type |
Double indicator |
| Connection/Terminal Material |
Silver-Plated Copper |
| Connection/Terminal Type |
Plain Blades |
| Product Width |
40 mm |
| Product Length |
135 mm |
| Product Height |
64 mm |
| Sell Pack Quantity |
3 EA |
| Sell Pack Weight |
1.26 kg |
| Sell Pack Width |
125 mm |
| Sell Pack Length |
139 mm |
| Sell Pack Height |
70 mm |
| Product group |
Low Voltage IEC Fuses |
| Product Weight |
0.42 kg |
| Body/Insulating Material |
Ceramic |
| Power Dissipation at Rated Current Value |
20 W |
andnbsp;
