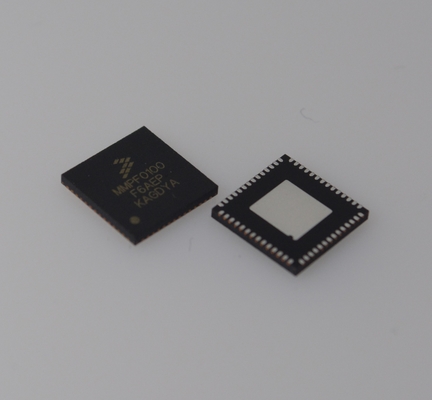

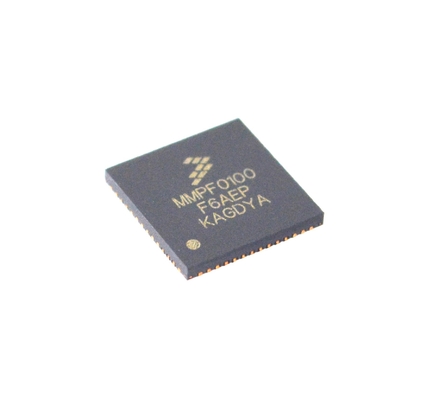

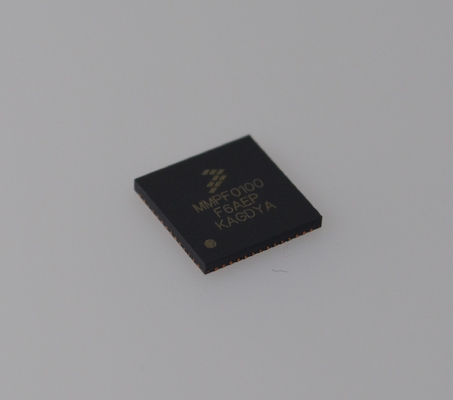

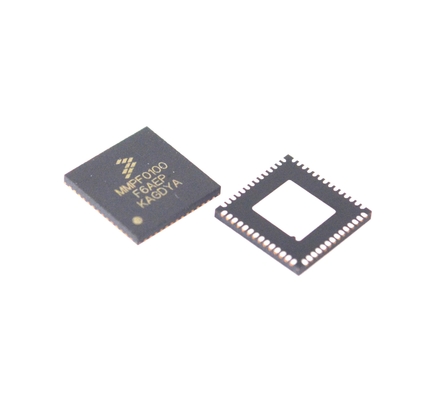

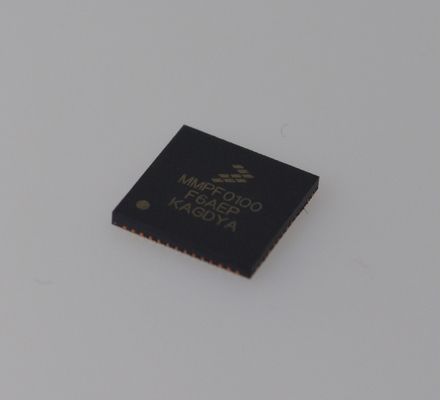

MMPF0100F6AEP i.MX-optimized PMIC with 6 Bucks+6 LDOs I2C Control 3.0-5.5V Input Dynamic Voltage Scaling -40°C to +105°C 64-QFN

MMPF0100F6AEP i.MX-optimized PMIC with 6 Bucks+6 LDOs I²C Control 3.0-5.5V Input Dynamic Voltage Scaling -40°C to +105°C 64-QFN

Features

• Four to six buck converters, depending on configuration

  • Single/Dual phase/ parallel options

  • DDR termination tracking mode option

• Boost regulator to 5.0 V output

• Six general purpose linear regulators

• Programmable output voltage, sequence, and timing

• OTP (one time programmable) memory for device configuration

• Coin cell charger and RTC supply

• DDR termination reference voltage

• Power control logic with processor interface and event detection

• I2C control

• Individually programmable ON, OFF, and standby modes

Applications

• Tablets

• IPTV

• eReaders

• Set top boxes

• Industrial control

• Medical monitoring

• Home automation/ alarm/ energy management

DESCRIPTION

The MMPF0100F6AEP from NXP is a highly integrated power management lC specificallyoptimized for i.MX series application processors. This PMlc features an advanced 64-pin QFNpackage and integrates 6 high-efficiency buck converters and 6 configurable LDO regulatorsproviding a complete power solution for multi-core processor systems.

High-Efficiency Power Architecture: 6 Dc-Dc buck converters (up to 95% efficiency) + 6 LDOlinear regulators

Intelligent Control: Supports l2C programmable interface for dynamic voltage scaling (DVS)and real-time monitoring

Wide Input Range: 3.0V to 5.5V operating voltage, compatible with various power solutions

Industrial-Grade Reliability: Operating temperature range of -40'C to +105°C

Processor-Optimized: Designed for i.MX6/7/8 series with fast startup sequencing support

High Integration: Built-in power sequencing control, reset circuit, and watchdog timer

Safety Features: includes over-voltage, under-voltage, over-temperature, and over-current protection

INFORMATION

Drawing

Our advantage :

• High quality products --- our offers are 100% new and original, ROHS
• Competitive price --- good Purchase channels with good price.
• Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
• Adequate inventory --- With the support of our strong Purchasing team,
• Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

be sure to meet your need for all kinds of components. ^_^
